Prevailing Torque Bearing Nut

¡@¡@ Prevailing torque nut with metal insert is designed in accordance with engineering basic principal. A spring ring is inserted onto a nut, so two pieces are to be formed an integral unit as a safety nut. When the nut is tighten on the bolt or screw, tensional force on the spring ring
ensures the nut to be locked securely. Within the designed torque limit, this typical nut provides good mechanical feature and wear characteristics so that nut can be used repeatedly for a reasonable period. Under severe vibrated or thermal (-30¢XC to 300¢XC) operation environment, the nut still maintains its good mechanical performance.

  • Self-Locking Nut = Nut + Stop Washer + Keyway
    ¡@
    Character :
    Eliminates stop washer and milling of keyway, reduces mounting time, assures a complete resistance to unscrewings, allows several serewing and uncsrewing, resistant to vibration, zine plated-rust resistance.

  • Replace traditional operation
  • Excellent mechanical performance
  • Prolong duration of machinery part
  • Improve safety during operation
  • M10 - M100

    Material : SAE 1008 Low Carbon Steel, C1045 Medium Carbon Steel, SUS304 Stainless Steel
    Application : Machinery, Axle of Motor, Speed Reducer, Robot, etc.
    Other special items : We can make special order for clients based on the order number.
    		•
    ¡@

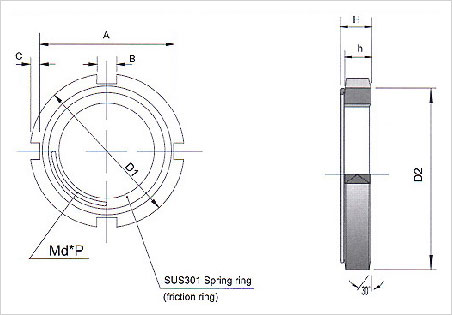

    No. Thread * pitch Dimensions
    D1 D1 D2 D2 A A C B B h H H
    AN00 M 10 x 0.75 18 0 - 0.2 13 ¡Ó0.2 14(14.4) 0 - 0.2 2(1.8) 3 ¡Ó0.1 4 5.2 ¡Ó0.3
    AN01 M 12 x 1 22 0 - 0.2 17 ¡Ó0.2 18(18.4) 0 - 0.2 2(1.8) 3 ¡Ó0.1 4 5.4 ¡Ó0.3
    AN02 M 15 x 1 25 0 - 0.5 21 0 - 0.5 21(21.4) 0 - 0.5 2(1.8) 4 ¡Ó0.2 5 6.5 ¡Ó0.5
    AN03 M 17 x 1 28 0 - 0.5 24 0 - 0.5 24(24.2) 0 - 0.5 2(1.9) 4 ¡Ó0.2 5 6.4 ¡Ó0.5
    AN04 M 20 x 1 32 0 - 0.5 26 0 - 0.5 28(28.4) 0 - 0.5 2(1.8) 4 ¡Ó0.5 6 7.7 ¡Ó0.5
    AN05 M 25 x 1.5 38 0 - 0.5 32 0 - 0.5 34 0 - 0.5 2 5 ¡Ó0.2 7 9.1 ¡Ó0.5
    AN06 M 30 x 1.5 45 0 - 0.5 38 0 - 0.5 41 0 - 0.5 2 5 ¡Ó0.2 7 9.1 ¡Ó0.8
    AN07 M 35 x 1.5 52 0 - 0.5 44 0 - 0.5 48 0 - 0.5 2 5 ¡Ó0.2 8 10.2 ¡Ó0.8
    AN08 M 40 x 1.5 58 0 - 0.5 50 0 - 0.5 53 0 - 0.5 2.5 6 ¡Ó0.2 9 11.2 ¡Ó0.8
    AN09 M 45 x 1.5 65 0 - 0.5 56 0 - 0.5 60 0 - 0.5 2.5 6 ¡Ó0.2 10 12.5 ¡Ó1.0
    AN10 M 50 x 1.5 70 0 - 0.5 61 0 - 0.5 65 0 - 0.5 2.5 6 ¡Ó0.2 11 13.5 ¡Ó1.0
    AN11 M 55 x 2 75 0 - 0.5 67 0 - 0.5 69 0 - 0.5 3 7 ¡Ó0.2 11 13.5 ¡Ó1.0
    AN12 M 60 x 2 80 0 - 0.5 73 0 - 0.5 74 0 - 0.5 3 7 ¡Ó0.2 11 13.5 ¡Ó1.0
    AN13 M 65 x 2 85 0 - 0.5 79 0 - 0.5 79 0 - 0.5 3 7 ¡Ó0.2 12 15 ¡Ó1.5
    AN14 M 70 x 2 92 0 - 0.5 85 0 - 0.5 85 0 - 0.5 3.5 8 ¡Ó0.2 12 15 ¡Ó1.5
    AN15 M 75 x 2 98 0 - 0.5 90 0 - 0.5 91 0 - 0.5 3.5 8 ¡Ó0.2 13 15.8 ¡Ó1.5
    AN16 M 80 x 2 105 0 - 0.5 95 0 - 0.5 98 0 - 0.5 3.5 8 ¡Ó0.2 15 18.6 ¡Ó1.5
    AN17 M 85 x 2 110 0 - 0.5 102 0 - 0.75 103 0 - 0.5 3.5 8 ¡Ó0.2 16 19.2 ¡Ó1.5
    AN18 M 90 x 2 120 0 - 0.5 108 0 - 0.75 112 0 - 0.5 4 10 ¡Ó0.3 16 20.3 ¡Ó1.5
    AN19 M 95 x 2 125 0 - 0.5 113 0 - 0.75 117 0 - 0.5 4 10 ¡Ó0.3 17 21.3 ¡Ó1.5
    AN20 M 100 x 2 130 0 - 0.5 120 0 - 0.75 122 0 - 0.5 4 10 ¡Ó0.3 18 22.3 ¡Ó1.5
    ¡@
    		¡@
    ¡@


    		¡@
